G Diminished 7th

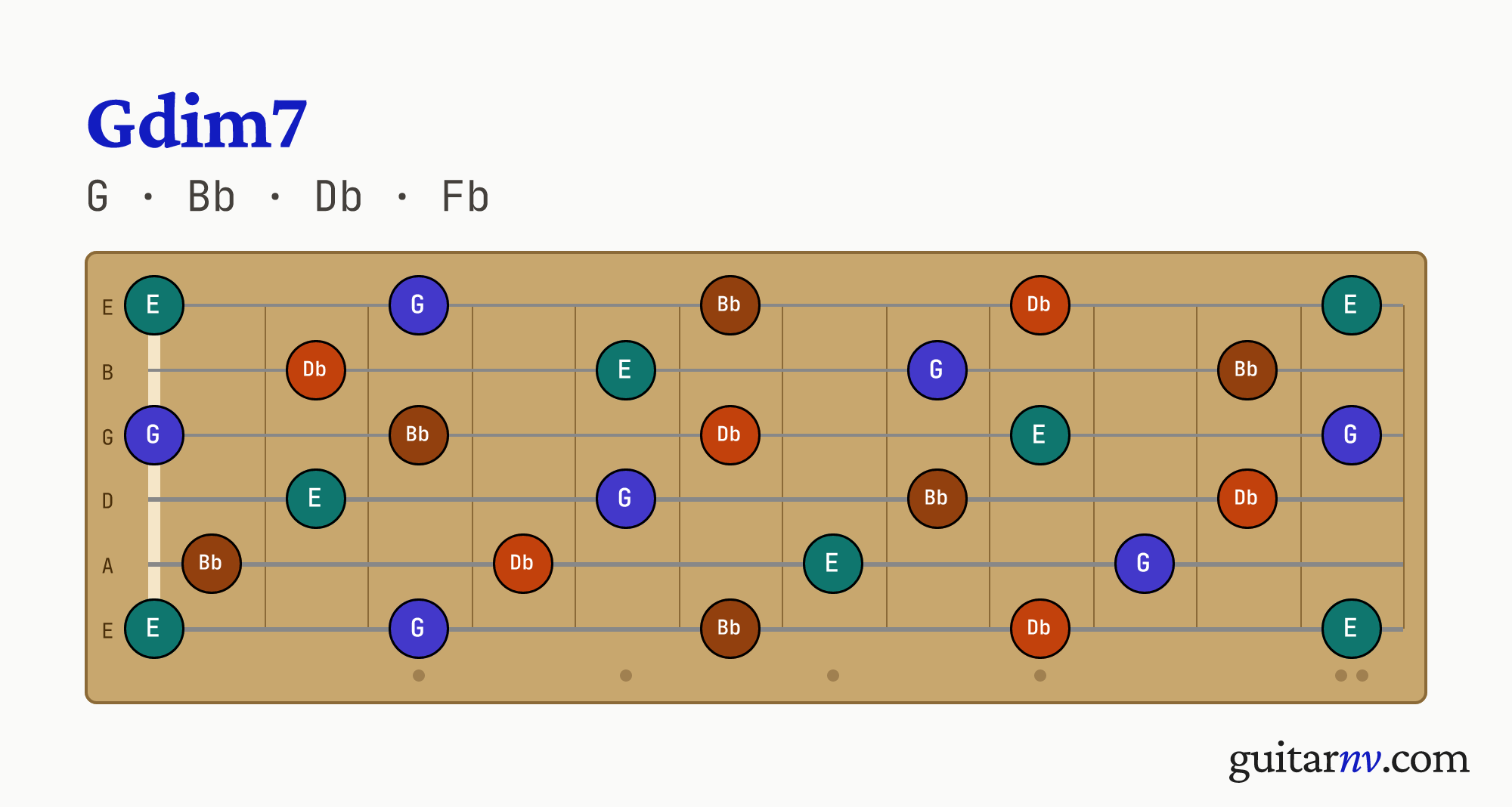

Fretboard

On the fretboard, E represents Fb.

Adjust labels, frets, and palette in the interactive view.

About

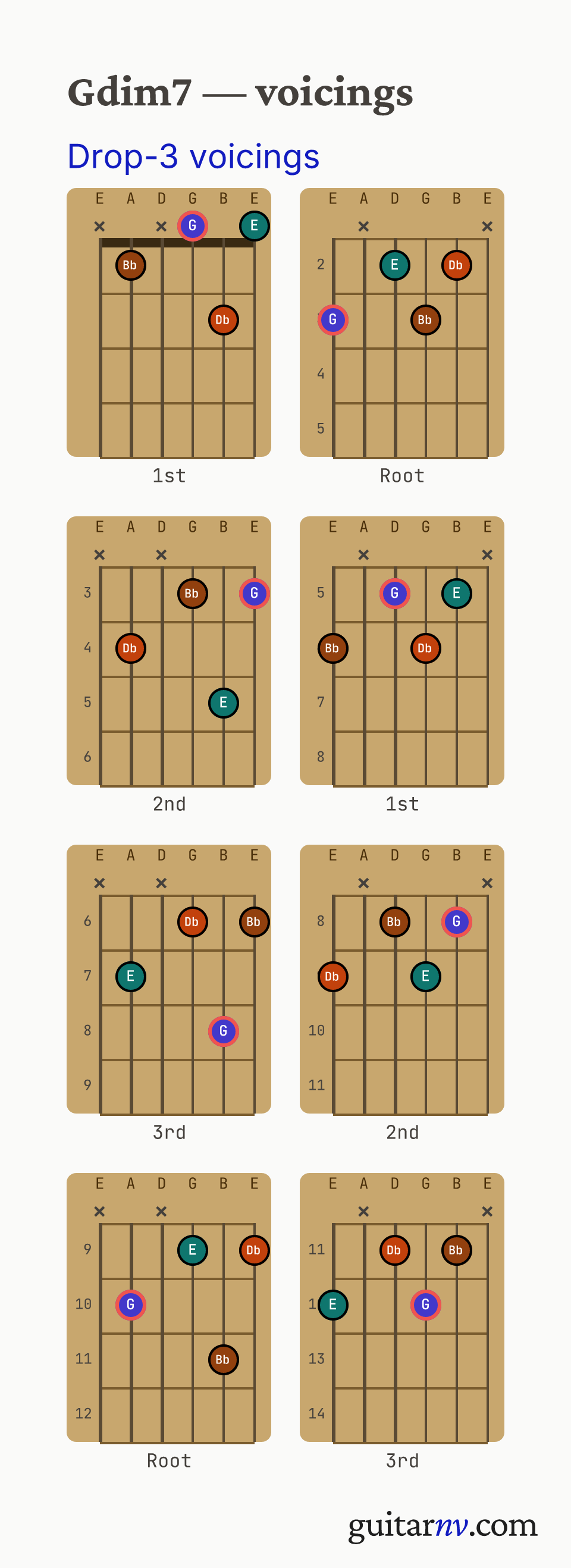

The G fully diminished 7 (G–B♭–D♭–F♭) stacks four minor thirds, giving it a fully symmetrical structure. Each note can be respelled as a root — G°7 is enharmonically the same chord as B♭°7, D♭°7, and F♭°7 — meaning a single shape on the guitar can function as four different leading-tone chords depending on context. This flexibility makes dim7 especially useful as a passing or substitution chord, often resolving up a half step (here to A♭). All four tones carry the chord’s identity; the chord is defined by its symmetry, so removing any note weakens that quality. On guitar, one shape repeats identically every three frets. Compared to Gm7♭5, dim7 is more unstable and dramatically tense.
